Industrial Cardboard Shredder for Packaging

With the rapid growth of the packaging and logistics industries, the demand for eco-friendly cushioning materials is increasing—along with the volume of discarded cardboard boxes. To support sustainable packaging solutions, Shuliy offers efficient industrial cardboard shredders that turn waste corrugated boxes into strips or mesh shock-absorbing fillers, ideal for e-commerce, warehousing, shipping fragile goods, etc.

What Can Be Processed By Our Industrial Cardboard Shredder?

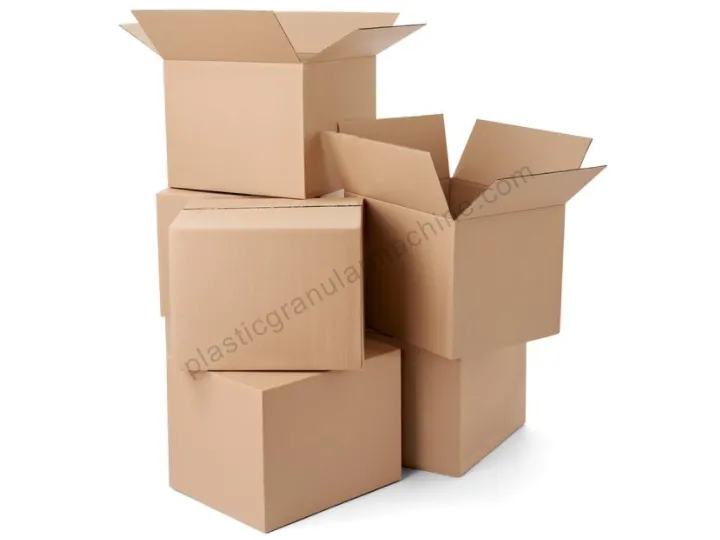

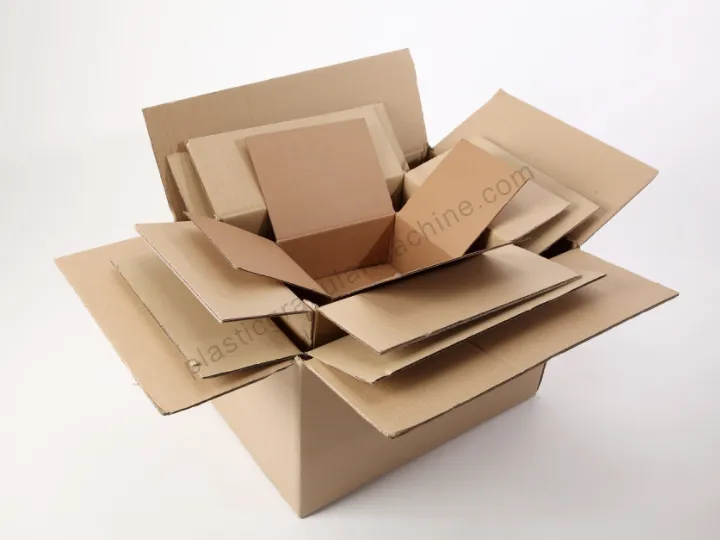

The cardboard shredder is mainly used to process discarded corrugated cardboard and boxes, which often come from warehouses and logistics packaging waste. These materials are bulky and take up valuable space.

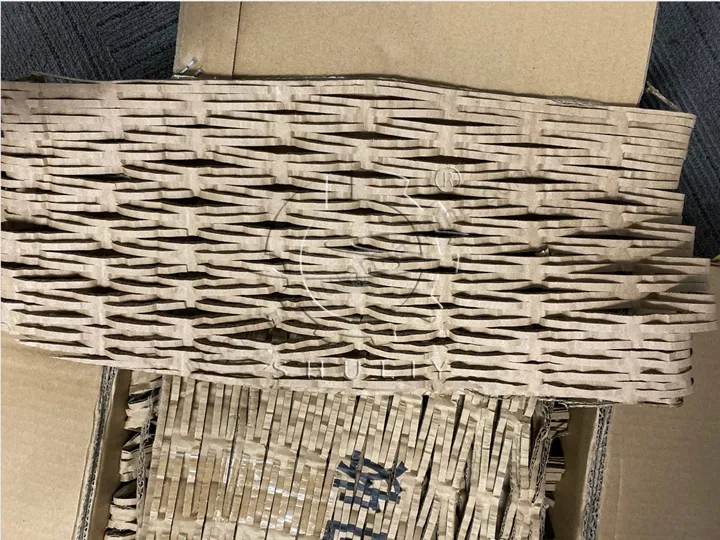

After processing, the waste cardboard is transformed into flexible, shock-absorbing filler material used for packaging. Two main types of output are available:

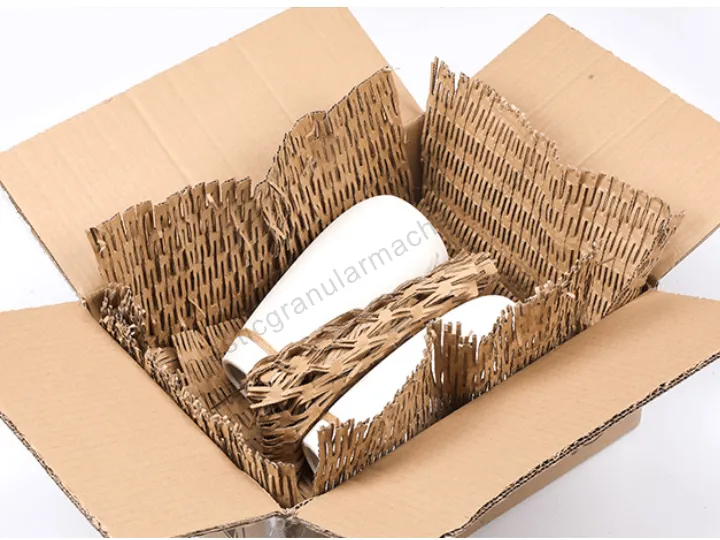

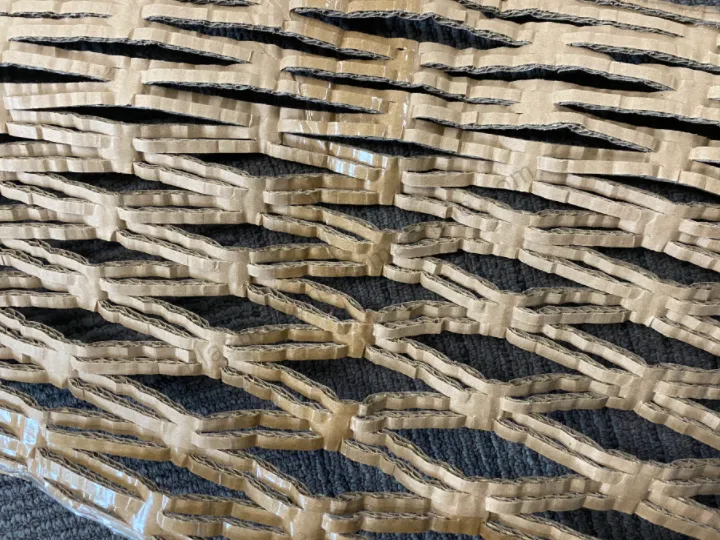

• Mesh( honeycomb) style
  • Acts like a paper cushion
  • Ideal for wrapping around fragile items( glass, ceramics, electronics)
  • Airt, flexible, and breathable
  • Simalar to plastic air bubble wrap but 100% biodegradeble

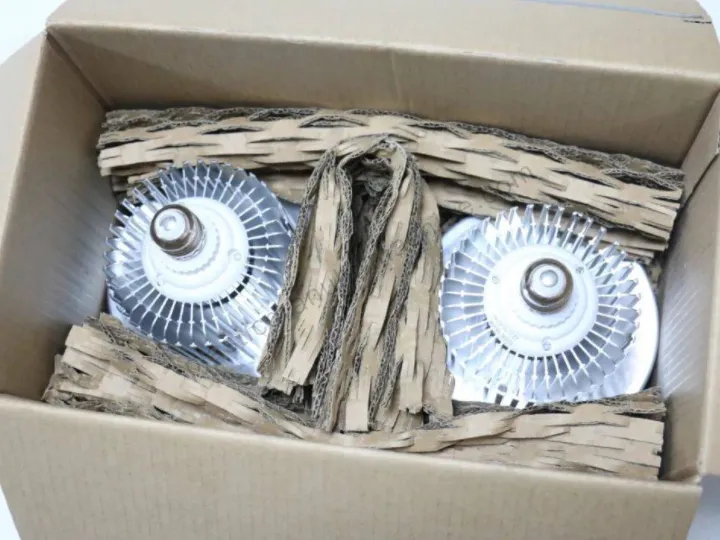

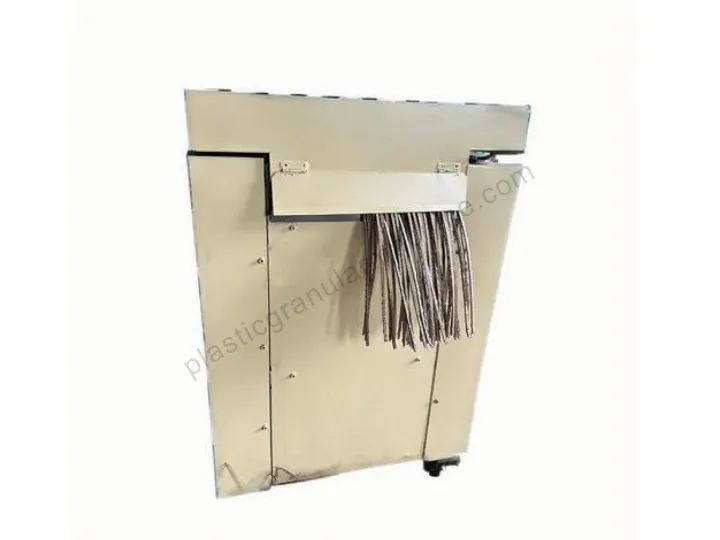

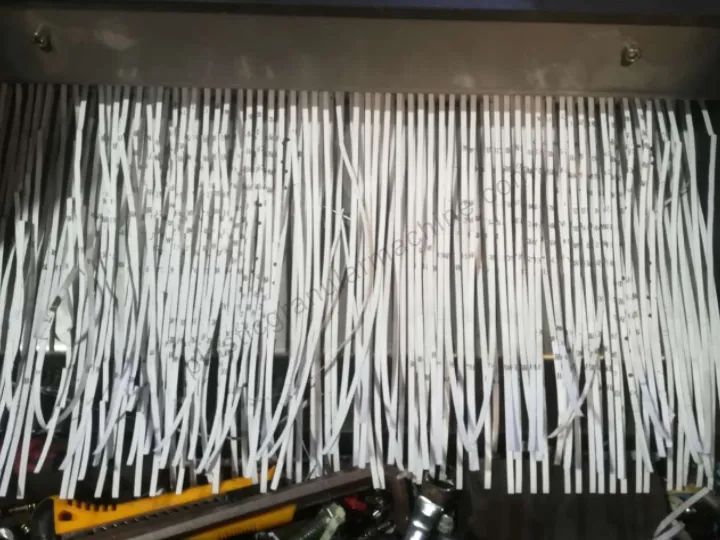

• Strip( ribbon) style
  • Used to fill empty space inside boxes
  • Provides anti-vibration and compression protection
  • Suitable for cushioning heavy or irregular-shaped goods

What Can Our Cardboard Box Shredder Bring You?

• Enables on-site recycling of waste cardboard to support eco-friendly packaging
• Significantly reduces costs on foam, bubble wrap, and other fillers
• Compact machine design with small footprint—ideal for any packaging station
• Supports both strip and mesh output to meet diverse packaging needs
• High-margin recycled output—perfect for fast ROI in e-commerce operations
• Customizable voltage, plug, and specifications available for different countries

Technical Data of the Paper and Cardboard Shredders

Some parameters of industrial cardboard shredders are as follows. If you want to learn more, please feel free to contact us!

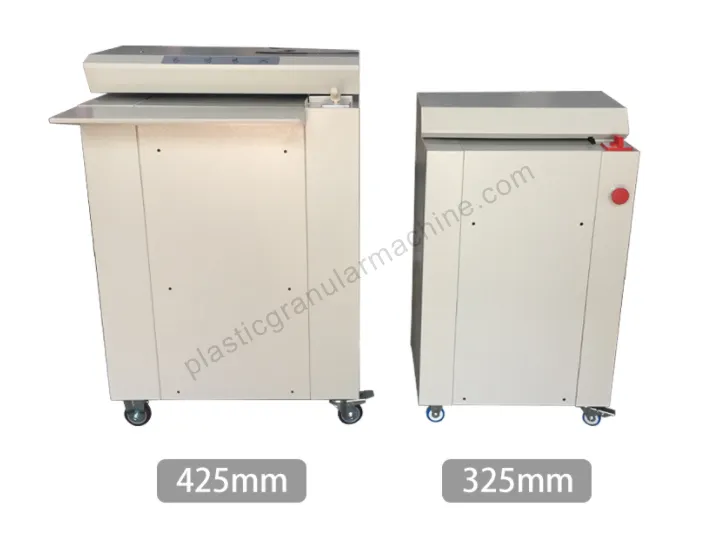

模型	SL-325	SL-425
Max Shredding Width	325mm	425mm
Material Compatibility	3-5 layers of corrugated cardboard, cardboard boxes	5-7 layers of corrugated cardboard, thick cartons
Shredding Style	Strip cut / Net cut (adjustable)	Strip cut / Net cut (adjustable)
Final Output Use	Protective packaging filler, shock-absorbing mesh	Protective packaging filler, shock-absorbing mesh
Entry Width	20mm	20mm
Voltage (customizable)	220V 50Hz (custom plug/voltage available)	380V 50Hz (custom plug/voltage available)
Power Consumption	1.5KW	2.2kw
Shredding Speed	12m/min	12m/min
Net Weight	86.5Kg	164Kg
Machine Dimensions (L*W*H)	500*350*830mm	700*680*970mm
Typical Applications	E-commerce packaging, warehouse waste recycling	Industrial cardboard processing, packaging centers
Benefit Highlight	Save cost on bubble wrap/foam, compact size, fast ROI	Save packaging material cost, high compatibility

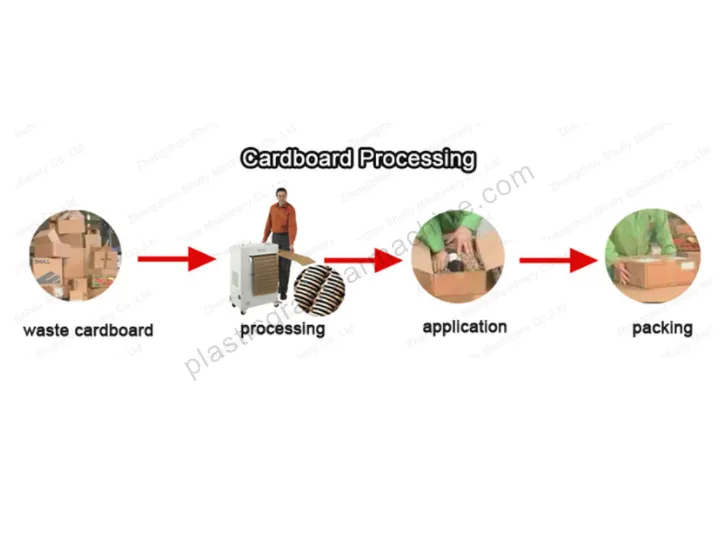

How Does the Paper Shredder for Cardboard Work?

The Shuliy industrial cardboard shredder processes waste corrugated cardboard into cushioning material through a safe and efficient mechanical process. Here’s how it works:

• Feeding the cardboard: Insert flat corrugated cardboard into the 20mm front feed inlet. Suitable for stacked cardboard.
• Transport mechanism: Internal rollers automatically pull the cardboard in, ensuring even pressure and smooth movement.
• Cutting and expanding: The cardboard goes through a cutting roller with sharp blades. Both mesh and strip types are available. And the blade module can be switched manually between styles.
• Flattening and expansion: For mesh style, the paper box is slightly stretched during cutting, allowing layers to separate for flexibility.
• Output discharge: The processed material is ejected from the rear, ready for use as packaging filler.
• Dust free and safe operation: The process is dust-free, operates quietly, and includes safety features to prevent hand injuries.

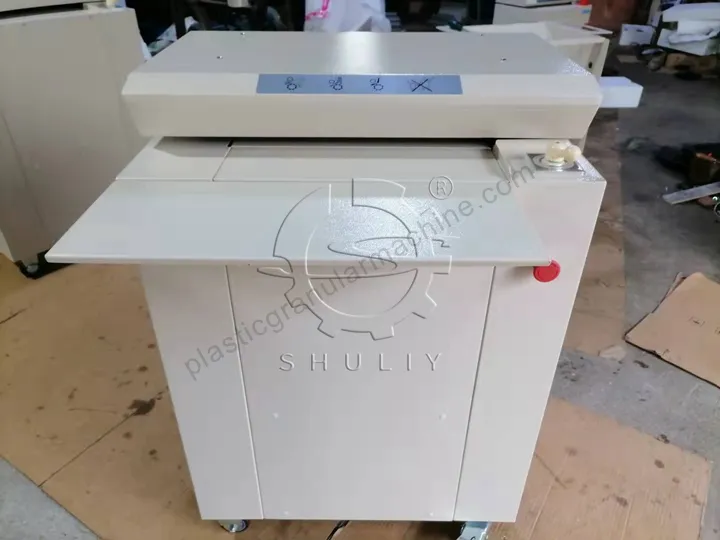

Trusted By Global Clients

Shuliy’s industrial cardboard shredder machines have been successfully delivered to clients worldwide and are widely used in e-commerce packaging, logistics, and agricultural packing. Many customers also choose our egg tray machine to recycle waste paper for further profit. Whether you need net-type or strip-type output, we support customization to meet your local voltage and plug standards.

Ready to upgrade your packaging process? Contact us today for a free quote!
